Euro 5 Engine Mini Crawler Excavator 2 Ton Small Mechanical Digger

Brand Name : Hightop

Model Number : HT20-2

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Product Name : Hightop Mini Excavator

Swing radius at tail : 650mm

Engine Brand : KUBOTA

Max. Digging radius : 4040mm

Max. Digging depth : 2400mm

Max. Bucket digging force : 18KW

Contact Now

Euro 5 Engine Mini Crawler Excavator 2 Ton Small Mechanical Digger

HT20-2 Hightop Mini Excavator Description:

This tailless crawler 2 tons mini excavator is a compact excavator which matched import brand,can telescoping the track frame.

HT20-2 Hightop Mini Excavator Features:

1--Tailless Type

2--Telescopic Track Chassis
3--Swing Boom
4--Hydraulic Joystick Operation
5--With High-Low Speed
6--Japan KUBOTA Engine
7--With A Standard Bucket 400mm

Hightop Mini Excavator Technical parameters:

Machine Size
Overall dimension (L*W*H) 3555mm*1300mm*2290mm
Axle base(Track length on ground) 1230mm
Track gauge 760mm
Min.Ground clearance 150mm
Swing radius at tail 650mm
Track System
Maximum Travel speed 4km/h
Width of track shoe 230mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
Performance Parameter
Standard bucket capacity 0.07m³
Swing speed 9rpm
Max. Grade ability 35°
Max. Bucket digging force 18KN
Max. Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2000kg
Engine
Emission Standard Euro 5/EPA
Engine Brand Kubota
Model D1105
Power/Rotation speed 14.1kw(20HP) 2000rpm
Number of cylinder 3
Working Range
Max. Digging height 3700mm
Max. Dumping height 2440mm
Max. Digging depth 2400mm
Max. Vertical digging depth 2025mm
Max. Digging radius 4040mm
Min .swing radius 1610mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 270mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°

Applications:

Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.

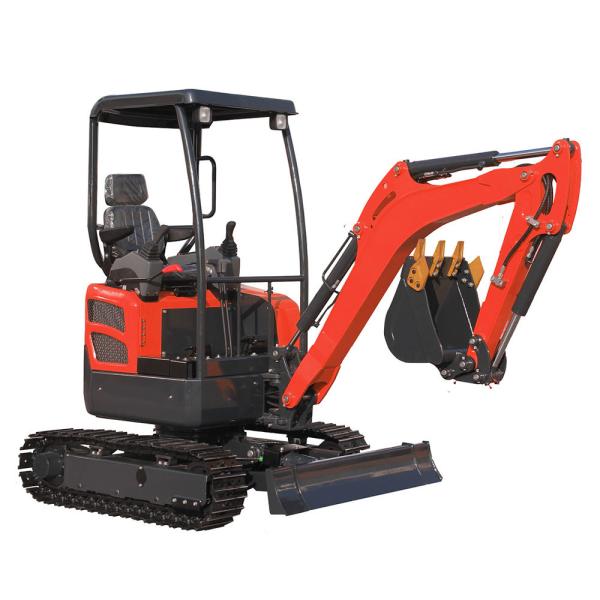

HT20-2 Mini Excavator Show Details:

Euro 5 Engine Mini Crawler Excavator 2 Ton Small Mechanical DiggerEuro 5 Engine Mini Crawler Excavator 2 Ton Small Mechanical Digger
